Your Best Value for boosting air flow in ducts or for powered air intakes and exhausts.

Duct Booster® Fans
Support Documents




Residential and Commercial Sizes.  Quality construction, Economically priced.
  • Boosts air flow in hard to heat or cool rooms.
  • Models for ducts 5" through 14".
  • Models EF-6 through EF-14 may be used as exhaust or air intake fans.
  • Easy installation in both metal and flex duct.
  • Optional speed and Duct Airstat operating controls.
  • Quiet, smooth operation.
  • Commercial/ Residential
    • Duct Booster Fan
    • Out Door Air Supply
    • Lunch Room Exhauster
    • Pole Barn Warehouse Exhaust
    • Spot Ventilation
    • Bathroom Exhaust
    • Fume Control systems

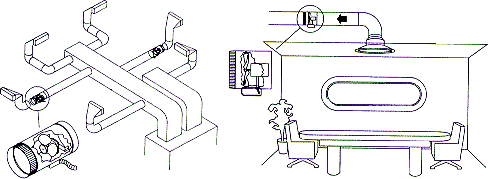

    Booster Installation



    Selection Table


    DUCT LENGTH IN FEET

    Model
    Motor Specifications
    25 Feet
    CFM
    50 Feet
    CFM
    75 Feet
    CFM
    Free Air
    CFM
    DB-2, 6" Duct
    DB-2, 8" Duct
    120V      1/70 HP  .51A
    150
    250
    100
    220
    95
    180
    200
    275
    EF-6, EF-6Auto*
    120V      30 Watt   .40A
    150
    100
    90
    180
    EF-8, EF-8Auto*
    120V      56 Watt    1.1A
    300
    250
    200
    325
    EF-10
    120V      1/100 HP  .46A
    400
    325
    275
    475
    EF-12
    120V     1/35 HP    1.25A
    800
    700
    600
    875
    EF-14
     120V     1/25 HP     1.70A
    1100
    1000
    900
    1200
    1. Table is based on straight metal duct.  90 Degree elbows are equivalent to 10 feet of straight duct. Performance based on 70 degrees F. standard air.
    2. The DB-2 can be installed in round ducts up to 8", rectangular ducts as shallow as 3 1/4".
    3. The number after EF-matches the duct diameter.  Example EF-8 connects to 8" round duct.
    4. For complete dimension and performance specifications consult factory.

    *EF-Auto Series include a built in pressure control for automatic operation.

    HIGH PRESSURE DUCT BOOSTER® FANS




      Versatile and durable Tjernlund M and P-Series Fans feature high pressure air handling performance with low noise and extremely low power usage.

    M-Series fans (metal housing) are ideal for long runs or air supply and exhaust applications requiring exacting performance.



    Use P-Series fans (plastic housing) as ultimate bathroom/spa exhausters to eliminate fogged mirrors and lingering odors, super quiet.  They also work great for exhausting high moisture areas such as sub-slab radon gas mitigation and dryer vent boosting.

    M-Series (Metal) Performance

    Model
    Amps
    Watts
    RPM
    Volts
    CFM VS Static Pressure
    0"       1/8"     1/4"     3/8"     1/2"      3/4"     1"     1 1/2"     2"
    Duct
    Dia.
    Weight
    M-4
    .9
    100
    3000
    120
    200    190     185     175     165      145    110     35       --
    4"
    9 LBS.
    M-6
    1.1
    125
    3000
    120
    530    510     490     465     440      375    310     175     --
    6"
    13 LBS.
    M-8
    1.8
    210
    3000
    120
    670    655     635     585     565      540    485     380   260
    8"
    15 LBS.
    M-10 2.1 260 3000 120 810    800     740     660     630      600    510     400   260 10" 16 LBS.

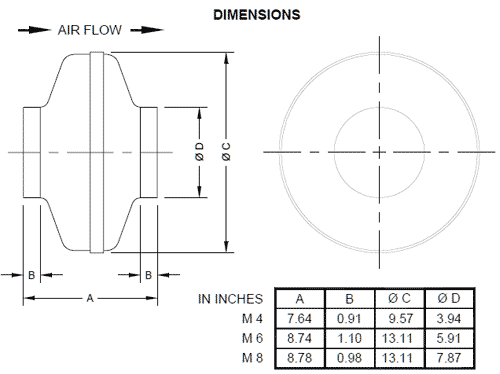

      M Fan Dimensional Drawing

    P-Series (Plastic) Performance



    Model PS1503 Duct Airstat
    • Senses positive pressure from central blower
    • Works year-round for both heating and a/c
    • Simplifies wiring

    PS1503 Fan Switch Inst



    Model SCP Speed Control


    • Plug in speed control for use with M and P Series High Pressure Fans.

      SCP Inst

    Model SC-1 Speed Control

    • Use to turn Duct Fans on/off and to vary motor RPM
    • Can be used with PS1503 Duct Airstat.
    • Can be used with Models EF-6, EF-8,
      & EF-10 (Face plate fits models EF-6, 8, 10)
    Accessories
    SC-1             G-Series            BD-Series
    DR-10 Dryer Vent Switch
    Used to automatically activate P-Series Duct Booster when dryer is in operation
    G-Series Supply/Exhaust Grills
    White plastic, dual
    purpose grills with mounting
    collars  (4", 6", 8" Sizes)
    BD-Series Back Draft Dampers:
    Galvanized steel, spring
    loaded dampers prevent
    backdrafts. (4", 6", 8" Sizes)
    EF-AUTO DUCT BOOSTER® FANS


    EF-AUTO Series

    The EF-6AUTO and EF-8AUTO include a built in pressure control for automatic operation when the forced air blower is running.

    The fan turns off when this airflow is no longer detected so it runs only when there is warm or cool air to distribute. Simply insert it into the duct run and plug it in.



    DUCT BOOSTER® REGISTER BOOSTER FANS

    RB-SERIES REGISTER BOOSTER FANS - For more comfortable rooms!

    Save on Energy Bills and Increase Comfort!
    RB-Series Register Booster fans are designed to increase the flow of heated air in warm air heating systems or cooled air in central air conditioning systems. These ultra quiet register booster fans are ideal when the duct run serving the room is not accessible to install a standard Tjernlund In-Line Duct Booster® fan. Requiring only about $5 per year to operate, the RB-Series includes power cord and built-in on/off switch. Plugs into standard 115 VAC outlet. Use optional SCP speed control or a remote on/off switch if desired.

    Whisper quiet operation

    • Low sone cross flow blower (1.4 sones) makes it 50% quieter than buzzing “muffin” fan styles

    Easy to install

    • Fits into existing register boot and includes 6’ power cord

    • Turn on or off with pre-wired toggle switch

    Blends with any décor

    • Commercial grade, paintable steel grille included

    • Low profile design rests flush with carpet or wood flooring


    RB10 (Brown Grille) For 4x10 Registers RB10W (White Grille) For 4x10 Registers
    RB12 (Brown Grille) For 4x12 Registers RB12W (White Grille) For 4x12 Registers

    Model Voltage Watts Sones RPM CFM
    RB10 / RB12 115 20 1.4 1800 75


    Cyclone Series Register Booster Fans

    Save on Energy Bills and Increase Comfort!
    Register Booster fans are designed to increase the flow of heated air in warm air heating systems or cooled air in central air conditioning systems. These ultra quiet register booster fans are ideal when the duct run serving the room is not accessible to install a standard Tjernlund In-Line Duct Booster® fan. Requiring only about $5 per year to operate, the RB-Series includes power cord and built-in on/off switch. Plugs into standard 115 VAC outlet.

    Simply drop into your 4"x10" register and plug in. The unit can be operated manually or based on temperature. In winter, when the room gets too cold the unit will come on to draw more furnace heat to that room. In summer, when the room gets too hot the unit will come on to draw more air conditioning to that room. Click here for video.

    • Installs flush with floor in seconds in any 3"x10" or 4"x10" register boot opening.
    • Operates manually or automatically for any season with a built-in, hidden sensor.
    • Features Sturdy Steel Construction and Grounded Power Cord.
    • Built-in 45 degree turning vanes guide air to the center of the room.
    • 20 Watt Low Energy Cross Flow Blower means its whisper quiet--no annoying buzzing like other fans.
    • 45 CFM, about 300% of typical register air volumes.

    CBB (Brown) For 3x10 or 4x10 Registers CBW (White) For 3x10 or 4x10 Registers

    Model Voltage Watts Sones RPM CFM
    CBB / CBW 115 18 1.4 1800 45




    Chimney Stack Assist Kit

    Balance Booster™ Fan

    Radon Vac Fan

    Stove Blower

    Basement Fan

    Rooftop Inducers

    Dryer Booster

    Room-to-Room Fans

    Crawl Space Fans
