 Oil Side Wall Vent Systems




SIDESHOT® SERIES MODELS SS1 & SS2
SIDESHOT® Series
Models: SS2, SS1, SS1C
The SideShot® models SS1 and SS2 SideWall Vent Systems include the UC1 Universal Control for increased safety, performance and reliability. Designed for oil fired heating equipment or a deluxe gas vent system.  Patented vent termination propels flue gases at high velocities away from the building exterior, a necessity when venting oil fired equipment. Both models can be installed with zero clearance to combustible materials and have stainless steel construction in critical areas.  Factory wired safety and operating controls allow
simple interlock with any burner. The new model SS2 features a self-cleaning stainless steel, backward inclined impeller and sealed ball bearing motor for virtually maintenance free installations.  Ultra-fine draft adjustment and slide-out access to all internal components. Easy multiple appliance interlocks with our MAC Series multiple appliance controls.
SideShot® Series
Support Documents
Full Line Lit
Side Wall Vent Ref Guide
SideShot® SS2 & 1 Lit

SideShot® SS1C Lit

SideShot® SS2 Inst

SideShot® SS1 Inst
SideShot® SS1C Inst


Complete Doc Library
Webinar Offered


SIDESHOT® MODEL SS1
SS1 logo

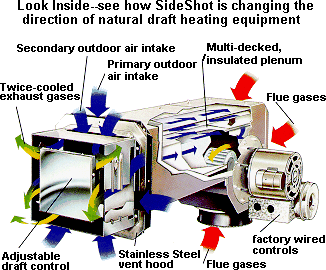

SS1 cut away view

SIDESHOT® MODEL SS1 APPLICATION TABLES
Verify that the total BTU/hr input of the heating appliance(s) fall within the proper category listed below.  Please note the capacity differs between the SS1, SS1C and SS2.  To determine equivalent feet, add the total length of straight vent pipe plus 10 feet for each 90 degree elbow and 5 feet for each 45 degree elbow.  Vent runs over 15 linear feet should use an approved, insulated vent connector to prevent problems related to condensation.   Multiple appliance interlocks require the use of our MAC-Series Multiple Appliance Controls.

The SS1 & SS1C feature a bottom or rear vent connection.  The inlet collar accepts any brand or type of 6" diameter vent pipe.


SS1 CAPACITY
MODEL
NATURAL AND LP GAS
FLAME RETENTION OIL BURNER
CONVENTIONAL  OIL BURNER
MAX. EQUIVALENT FEET
SS1
50,000-160,00
BTU/hr.
50,000-220,000
BTU/hr.
1.55 gal/hr. max.
50,000-180,000
BTU/hr.
1.25 gal/hr. max.
50 feet


SS1C CAPACITY
(For larger residential and commercial applications)
MODEL
FLAME RETENTION
OIL BURNER
CONVENTIONAL
OIL BURNER
MAX. EQUIVALENT FEET
SS1C
50,000-315,000
BTU/hr.
2.25 gal/hr. max.
50,000-223,000
BTU/hr.
1.59 gal/hr. max.


50 feet
(15.2 meters)

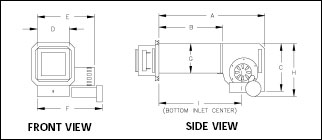

SS1 DIMENSIONS


A
B
C
D
E
F
G
H

I

27 3/8"
16 1/2"
12 1/4"
8"
13 3/4"
15 1/8"
7 3/4"
14 3/4"

23 1/4

Note: The SS1 requires an 8"H x 8 3/8"W opening through the wall


SIDESHOT® MODEL SS2
SS2 logo
SS2 cut out

SIDESHOT® MODEL SS2 APPLICATION TABLES
Verify that the total BTU/hr input of the heating appliance(s) fall within the proper category listed below.  Please note the capacity differs between the SS1, SS1C and SS2.  To determine equivalent feet, add the total length of straight vent pipe plus 10 feet for each 90 degree elbow and 5 feet for each 45 degree elbow.  Vent runs over 15 linear feet should use an approved, insulated vent connector to prevent problems related to condensation.  Multiple appliance interlocks require the use of our MAC-Series Multiple Appliance Controls.

SS2 CAPACITY
MODEL
FLAME RETENTION
OIL BURNER
FAN ASSISTED
NATURAL & LP GAS
ATMOSPHERIC
NATURAL & LP GAS
MAX. EQUIV.
FEET
SS2
70,000-168,000*
BTU/hr.
40,000 - 150,000
BTU/hr.
40,000 - 125,000
BTU/hr.
50

 *Maximum capacity based on 13% CO2 and Max. 500o F. inlet temperatures.  Consult factory for details.

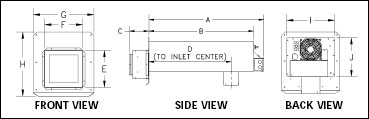

SS2 DIMENSIONS

A
B
C
D
E
F
G
H
I

J

32 1/2"
28 1/2"
5 1/2"
22 3/8"
7 3/4"
8"
12 1/2"
13 1/4"
10 1/2"

8 1/2"

Note: The SS2 has a 4" vent connector. Install full size vent pipe and reduce at SS2 connector.
The SS2 requires an 8 1/2"H x 10 1/2"W opening through the wall.


MODELS HSJ, HS1, HS2
HS Series
Models: HSJ, HS1, HS2
The SideShot® Series is recommended for oil applications.  We recommend the use of our HS-Series venters for oil burner inputs larger than the SideShot® Vent System capacities. For Sidewall venting residential/light commercial natural gas, LP or oil fired equipment including:  Furnaces, boilers, water heaters and unit heaters. All models feature the new UC1 Universal Control and a diaphragm Fan Proving Switch safety interlock which will shut down heating equipment if a venting malfunction occurs. Built-in adjustable damper also allows regulation for maximum combustion efficiency.  UC1 Universal Control features include; adjustable pre and post-purge settings, LED Status/diagnostic indicators, Fan Prover switch monitoring.  Interlocks with any 24-120 VAC burner control circuit and also includes "dry" contact actuation option. Easily interlock multiple appliances with our MAC-Series multiple appliance controls.
HSJ, 1, 2
Support Documents
Side Wall Vent Ref Lit
HSJ, 1, 2 Specs
HSJ, 1, 2 Inst


Complete Doc Library
Webinar Offered


MODEL
NUMBER
VENT
PIPE
DIA.
BTU/HR
INPUT
MAX. PIPE
LENGTH (FEET)
AT STACK TEMP.

GAS FIRED
300 F.

MAX. PIPE
LENGTH (FEET)
AT STACK TEMP.

GAS FIRED
400 F.

MAX. PIPE
LENGTH (FEET)
AT STACK TEMP.

OIL FIRED

500 F.
CFM AT 70 degrees F.
(Static Pressure)


0"     .50"     .75"     1.0"    1.4"



HSJ**


4"
50,000
75,000
100,000
125,000
100'
100'
100'
35'
100'
100'
100'
23'
100'
100'
---
---
110      85      67      10      ---
HS1**


4"




6"

150,000
200,000
250,000
300,000

150,000
200,000
250,000
300,000

100'
87'
40'
4'

100'
100'
100'
30'

60'
57'
12'
---

100'
100'
92'
---

35'
27'
---
---

100'
100'
---
---

158      115     95     12     ---


HS2**


6"





8"

350,000
400,000
450,000
500,000
550,000
600,000

350,000
400,000
450,000
500,000
550,000
600,000

100'
100'
100'
100'
94'
15'

100'
100'
100'
100'
100'
67'

100'
100'
100'
72'
---
---

100'
100'
100'
100'
---
---

100'
100'
67'
---
---
---

100'
100'
100'
---
---
---

286     235     215    196    158
**Oil applications must use the SideShot® Vent Systems or HSJ, HS1, HS2 models which include UC1 Control with integral Pre and Post-Purge settings.
