Tjernlund Products, Inc. Tjernlund draft inducers, power venters, ventilation









 XCHANGER Reversible Basement Fans



 Ventilate Damp, Musty Basements / Improve Indoor Air Quality

Many homes have damp basements that are stale, musty or smelly because of seasonal water issues, sump pits, floor drains or general lack of air exchange. The XCHANGER Basement Fan is the economical and simple way to automatically ventilate your basement to eliminate basement odors and reduce humidity.

Also use the XchangeR to:

  • Exhaust musty air or air contaminated by wood off-gassing or radon

  • Supply fresh make up air in tight homes or for stoves and fireplaces

  • Position one fan in each direction for balanced fresh air exchange

  • Ventilate hot garages, storage areas and workshops

  • Keep cabins and lake homes fresh

  • Dilute basement radon levels

XCHANGER™
Support Documents
Full Line Lit
X2D & X2R XCHANGER™ Lit
Ventilation Products Lit
X2D XCHANGER™ Inst
X2R XCHANGER™ Inst
DT2-6 Duct Take-Off Inst
SCP Speed Control Inst

Complete Doc Library



Easily flip ONE or BOTH fans to have them*:

  • Exhaust musty air or air contaminated by wood off-gassing or radon

  • Supply fresh make up air in tight homes or for stoves and fireplaces

  • Position one fan in each direction for balanced fresh air exchange

* All three orientations exceed ASHRAE 62.2-2007
   Ventilation Air Requirements


Features of the X2D and X2R:

  • Ultra quiet dual fans for exhaust, supply or balanced air exchange

  • Simple plug-in electrical (6' cords) and very low power use

  • Installs through rim joist of 16" on center or greater floor joists or through wall

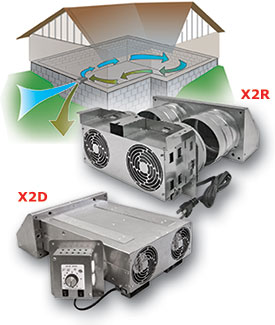

X2D

X2R


X2D includes the fans and hood all in one compact unit. Includes dehumidistat control and magnetic draft stops to prevent unwanted air from entering your home. Install X2D through a 12 ¼ x 5 ¼ inch opening in a basement rim joist or any outside wall. Plug XchangeR fans into dehumidistat control and plug control into standard outlet.



Use X2R in applications where outside hood must be located in a different room than the fans are installed in. Hang X2R from floor joist / truss or secure to wall. Install hood through  13 3/4" x 6 1/2" oval opening utilizing template and duct 6” flex to X2R collars on fan housing. The X2R includes magnetic draft stops to prevent unwanted air from entering your home. It does not include a dehumidistat control so that it can be paired with the type of control that best fits the application.


X2D Unique Features:

  • Adjustable dehumidistat and separate on/off switches for each of the quiet 90 CFM fans

  • Magnetic draft stops prevent unwanted air from entering your home

X2R Unique Features:

  • Hood separate from fans for installation flexibility

  • Fan assembly mounts from floor joist / truss or on wall in any orientation for ease of installation and flexibility

  • Magnetic draft stops prevent unwanted air from entering your home

X2D Accessories

  • DT2-6 6" Duct Take-Off

  • SCP Speed Control

  • SWR Switch-It Wireless Outlet

X2R Accessories

  • DH2P Dehumidistat Control

  • BD-6 6" Spring Return Back-draft Damper

  • DT2-6 6" Duct Take-Off

  • SCP Speed Control

  • SWR Switch-It Wireless Outlet

For less than the cost of a portable dehumidifier and at a fraction of the operating expense, reduce humidity levels and eliminate the musty smell of basement mold by installing a Tjernlund XCHANGER basement fan.

XCHANGER Animation Video

XCHANGER Demonstration Video

XCHANGER Display Video

Watch the Animation

Watch the Demonstration

Watch the Display Video

Specifications for Models X2D and X2R

Number of Fans Operating Voltage Watts Amps CFM
1 120 VAC 36 0.3 90
2 120 VAC 72 0.6 180




SCP Duct Take Off Skytech 1315g Wireless Remote Control
SCP
Speed Control
DT2-6 6" Duct Take-Off DH2P
Dehumidistat Control
(Included w/X2D)
SWR
Switch-It Wireless 120V Outlet
BD-Series 6" Spring Return
Back Draft Dampers
G-Series Exhaust/Intake
Grilles

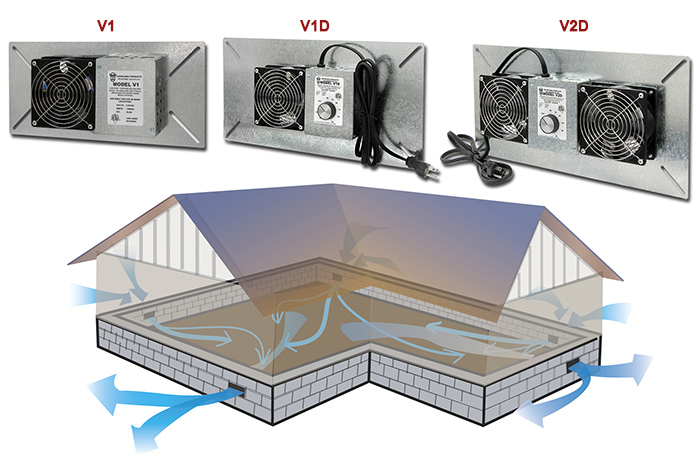

UnderAire™ Crawl Space Ventilation Fans
Fan powered crawl space ventilation quickly reduces moisture helping to protect both home and occupants. Ventilates excess moisture, the cause of mold, mildew and wood rot. Increases air circulation to fight condensation. Constant operation helps vent radon, treated wood off-gassing and odors that might otherwise migrate into living areas.
